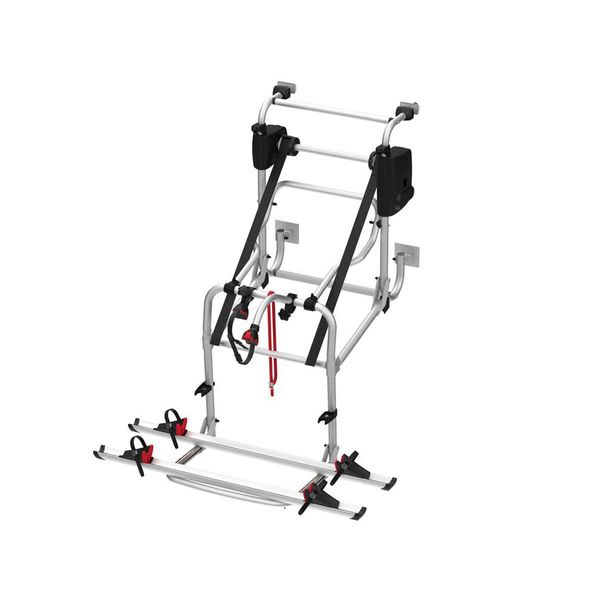

The Fiamma Motor Lift 77 is one of the most practical motorised bike carrier models, suitable for all types of motorhome.</p>
The Carry-Bike can be installed on the back wall of the motorhome. Wall fixing points with vertical wheelbase from 68 to 108 cm.</p>
Two Rail Premium bike rails are delivered as standard and can carry any sort of bike. The bike carrier can also be adapted to carry up to four standard bikes (or two e-bikes) with additional parts (available separately).</p>
The support rail lowers by 77cm for effortless loading and unloading of bicycles. The 12V lift is activated by push-button for easy ascent and descent.</p>
The bike carrier is supplied with:<br>
- Bike-Block Pro 1 (bike fixing system)<br>
- Bike-Block Pro 3 (bike fixing system)<br>
- Security Strip<br>
- 2 x Rail Plus (bike rails)<br>
- Brackets</p>
The carrier can be adapted to carry up to four bikes with the addition of Bike-Block Pro 2 and 4, and two additional Rail Plus rails.</p>
Dimensions: 128 x 78 x 68cm (with rail support base in standard open position and in models with minimum adjustable vertical wheelbase).</p>
Vertical wheelbase: 68 to 108cm<br>
- Horizontal wheelbase (distance between brackets): 60cm<br>
- Distance between bike rails: 15cm</p>
For the Adapter Kit for installing the bike carrier on vehicles already fitted with Kit Support Bar, see our product code 12215 (Fiamma part number 08724-01-). , Normal Lead Time 2-3 days</p>
